PN:USW-48

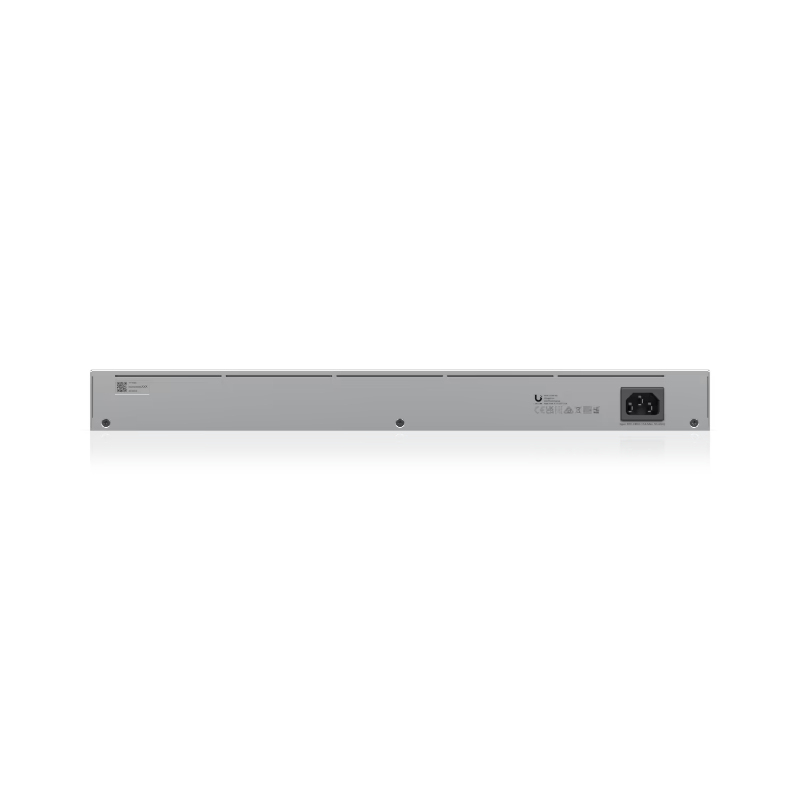

UBIQUITI UNIFI SWITCH 48 PUERTOS USW-48
48x 1GbE RJ45, 4x1G SFP
Overview
Dimensions
442 x 285 x 44 mm
(17.4 x 11.2 x 1.7")
Port Layout
1 GbE RJ45
48
1G SFP
4
Form Factor
Rack mount (1U)
Performance
Switching Capacity
104 Gbps
Total Non-Blocking Throughput
52 Gbps
Forwarding Rate
77 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
Packet Buffer Size
1.5 MB
Layer 2 Features
LACP Port Aggregation
Yes
STP & RSTP
Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes
IGMP Snooping
Yes
802.1X Control
Yes
MAC-Based ACLs & Device Isolation
Yes
DHCP Snooping & Guarding
Yes
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast & Broadcast Rate Limiting
Yes
MAC Address Blocking
Yes
IP-Based ACLs & Network Isolation
Yes
MAC-Based Port Restriction
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
LLDP-MED
Yes
Voice VLAN
Yes
Loop Protection
Yes
Hardware
Max. Power Consumption
40W
Power Method
Universal input, 100—240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 60W
Supported Voltage Range
100—240V AC
Management
Ethernet
AR
Heat Dissipation (Excluding PoE Output)
136.48 BTU/hr
Weight
Without mounting brackets: 3.9 kg (8.6 lb)
With mounting brackets: 4 kg (8.8 lb)
Enclosure Material
SGCC steel
Supported Rack Depth
400~1200 mm
(15.7-47.2")
LCM Display
1.3" touchscreen
Ambient Operating Temperature
-15 to 40° C (5 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
