PN:90MB1GT0-M0EAY0

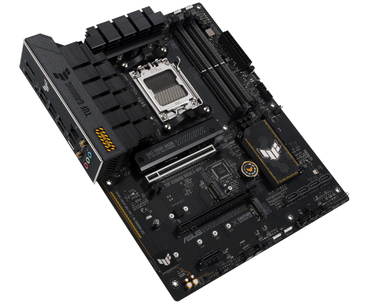

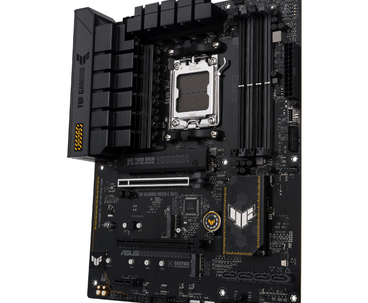

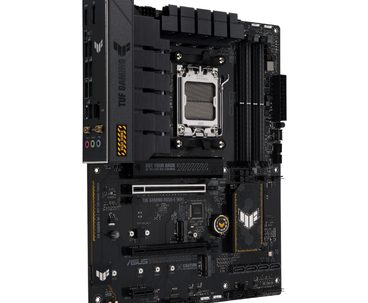

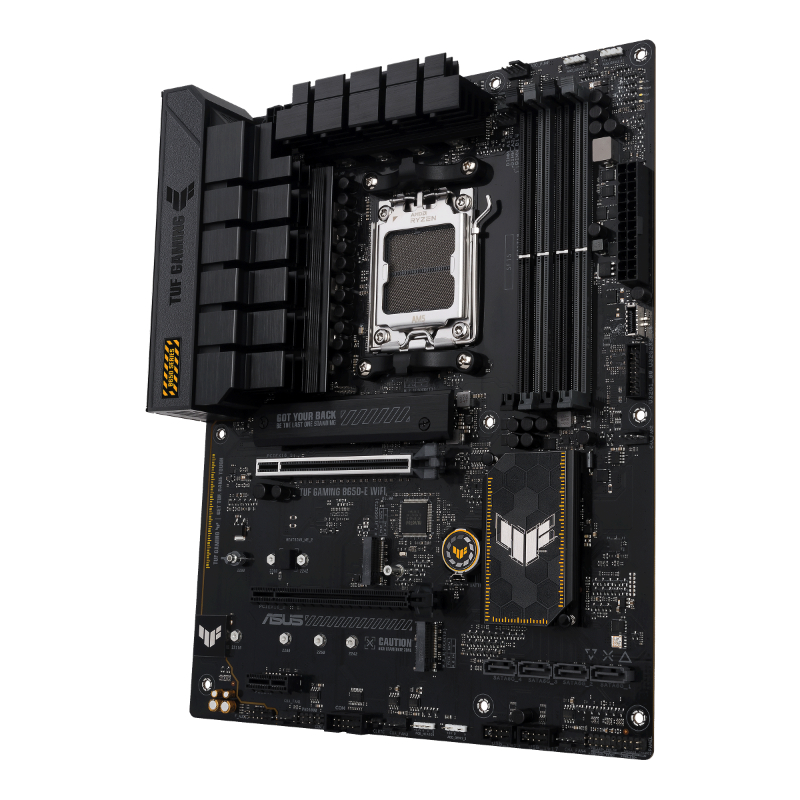

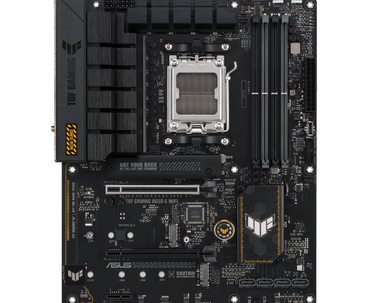

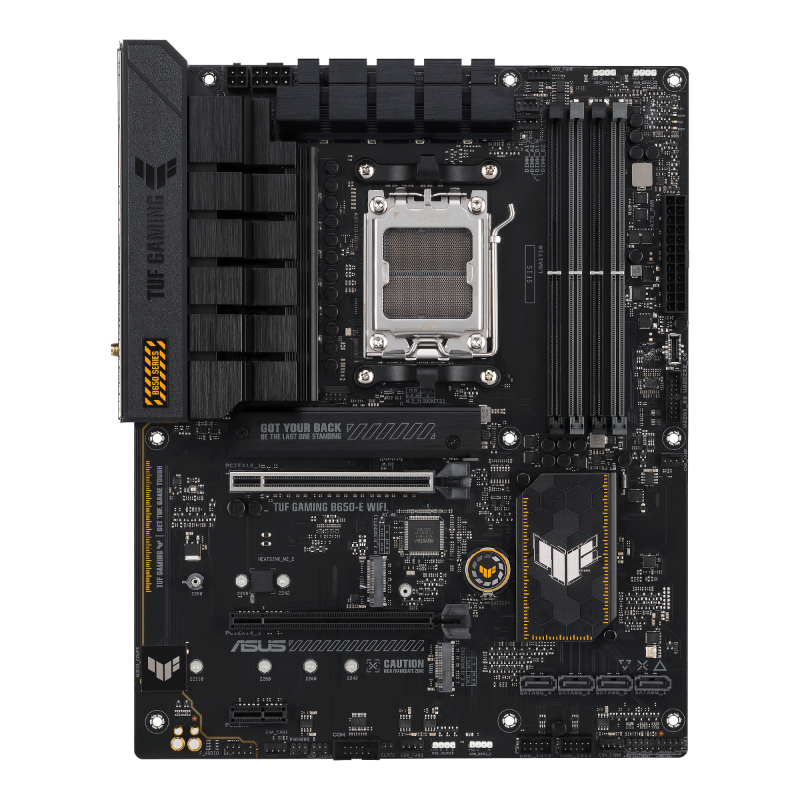

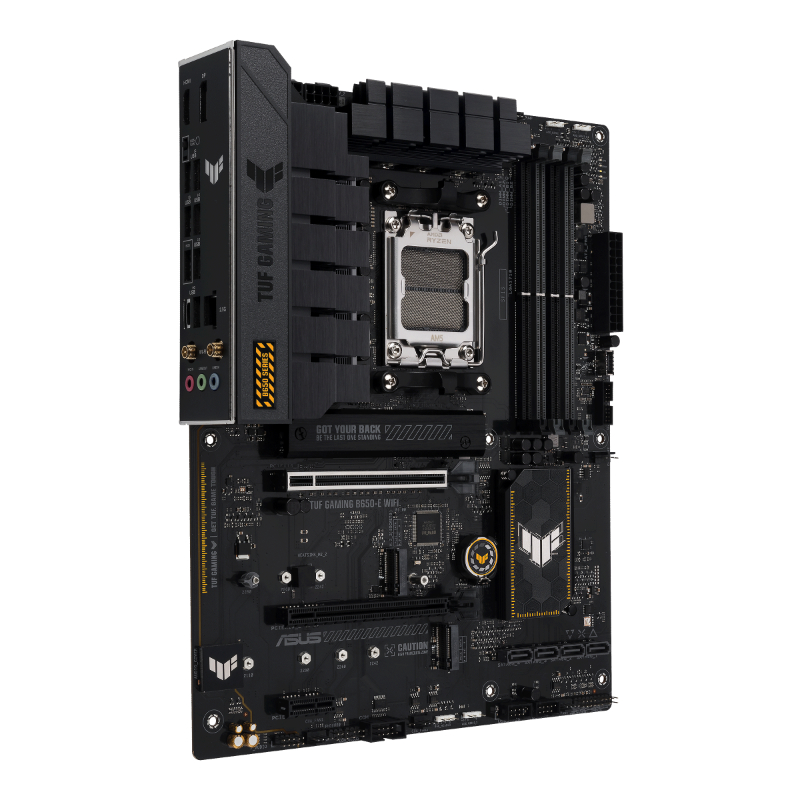

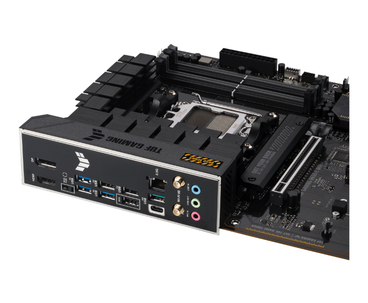

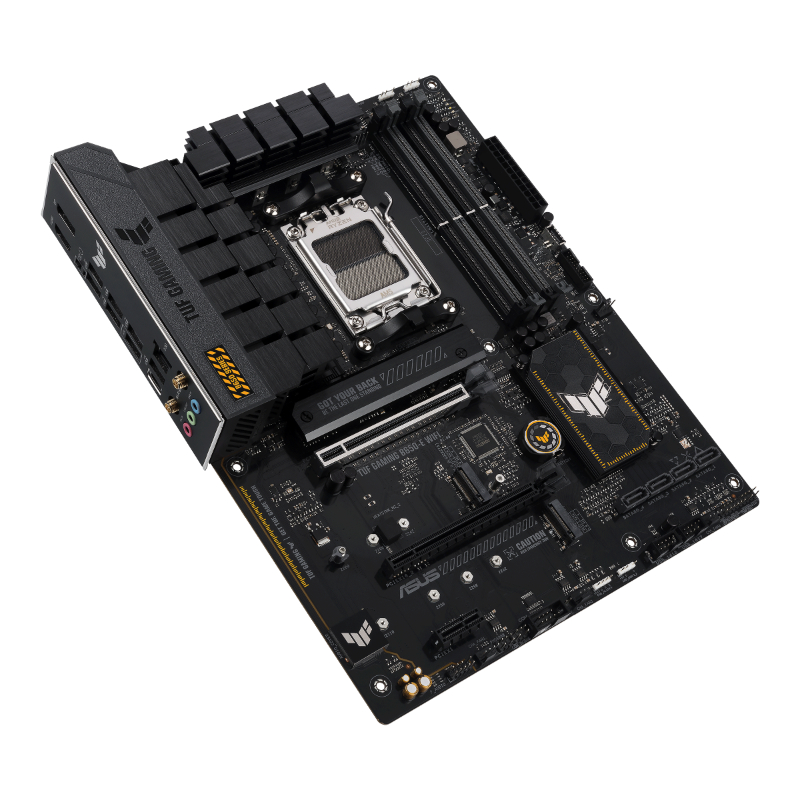

PLACA BASE TUF GAMING B650-E WIFI ASUS
AMD AM5/ DDR5/AMD B650/ HDMI, DisplayPort/ ATX/ WiFi AX
PN:90MB1GT0-M0EAY0
PLACA BASE TUF GAMING B650-E WIFI ASUS
AMD AM5/ DDR5/AMD B650/ HDMI, DisplayPort/ ATX/ WiFi AX
- ●Chipset: AMD B650
- ●Formato: ATX
- ●Imagen Salida: Graficos en CPU, HDMI, Displayport
- ●Microprocesador Integrado: No
- ●Nº Bancos De Memoria: 4
- ●Nº Conexiones SATA: 4
- ●SATA 6Gb/S: 4
- ●Socket: AMD AM5
- ●Tecnologia De Memoria: DDR5
- ●Tipo De Raid: 0,1,10
ASUS TUF GAMING B650-E WIFI toma todos los elementos esenciales del último zócalo AM5 para procesadores de sobremesa AMD Ryzen™ y los combina con funciones listas para jugar y una durabilidad probada. Diseñada con componentes de grado militar, una solución de alimentación mejorada y un completo sistema de refrigeración, esta placa base supera las expectativas con un rendimiento sólido como una roca y estable para juegos maratonianos. Las placas base TUF GAMING también se someten a rigurosas pruebas de resistencia para garantizar que pueden soportar condiciones en las que otras podrían fallar. Estéticamente, este modelo incorpora resistentes elementos de diseño geométrico y negro apagado para reflejar la fiabilidad y estabilidad que definen a la serie TUF GAMING.
Especificaciones:
CPU
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000 Series Desktop Processors*
*Refer to www.asus.com for CPU support list.
Chipset
AMD B650
Memoria
4 x DIMM, Max. 192GB, DDR5
8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Gráficos
1 x DisplayPort*
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.
Ranuras de expansión
AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 4.0/3.0 x16 slot(s)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x1 mode)
1 x PCIe 4.0/3.0 x1 slots
* Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Almacenamiento
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.
Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 8 ports)
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

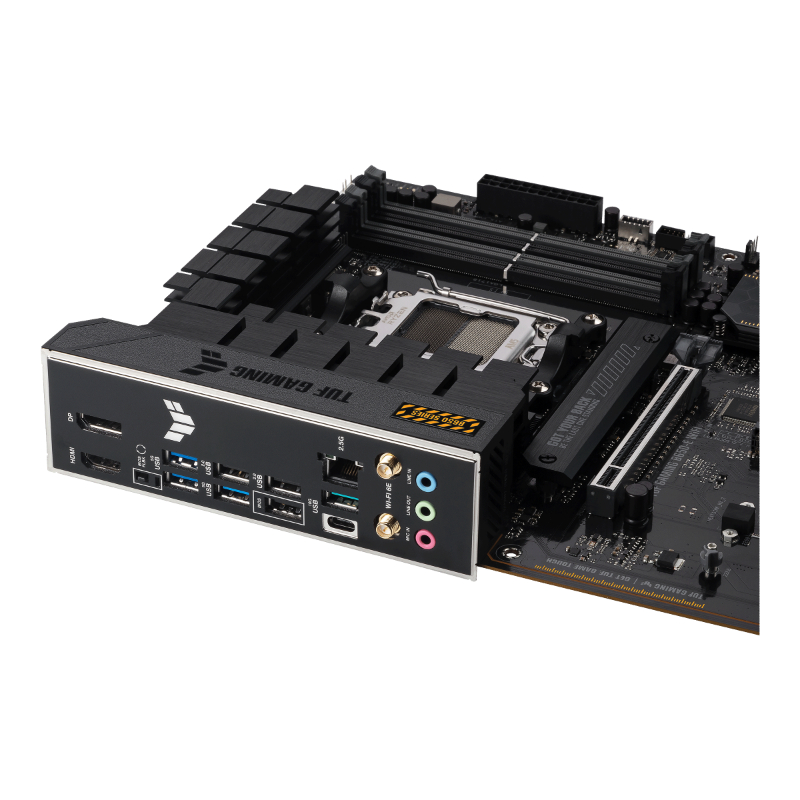

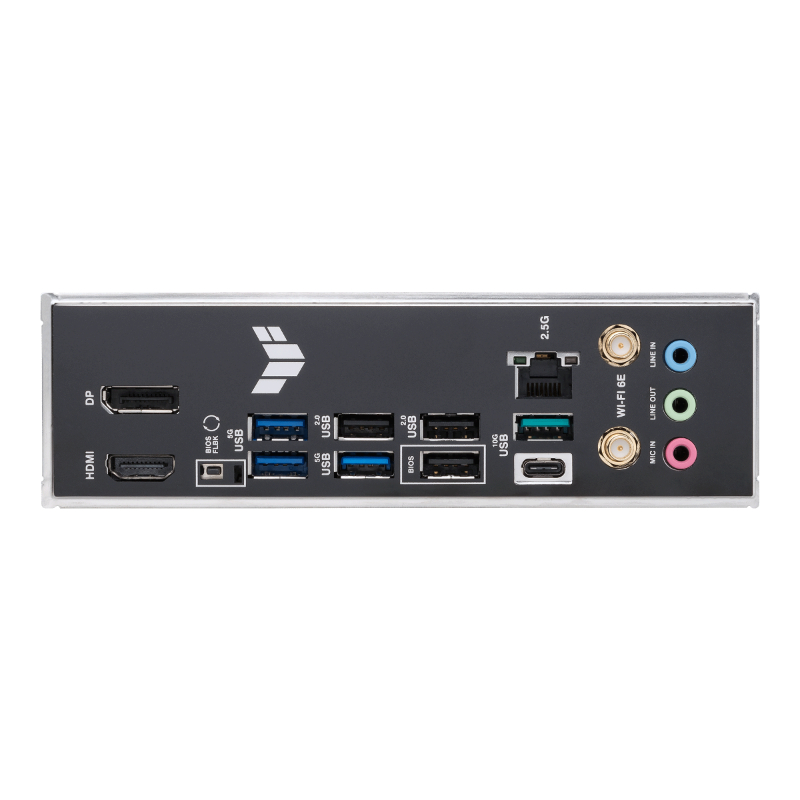

Puertos de E/S del panel posterior
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
Conectores de E/S internos
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
20-3 pin System Panel header with Chassis intrude function
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Factor de forma
ATX Form Factor
30.5 cm x 24.4 cm
PN:90MB1GT0-M0EAY0
PLACA BASE TUF GAMING B650-E WIFI ASUS
AMD AM5/ DDR5/AMD B650/ HDMI, DisplayPort/ ATX/ WiFi AX
