Especificaciones:

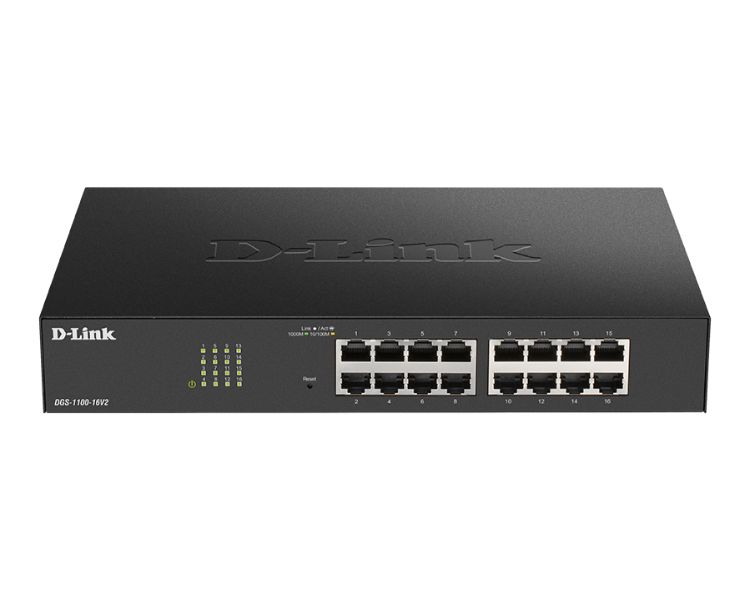

Device Interfaces: • 16 x 10/100/1000 Mbps LAN ports
Standards:
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
Switching Capacity: • 32 Gbps
Advanced Features:
• Auto-MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Supports 9,216 byte jumbo frames
• Back pressure at half-duplex operation
• Wire-speed reception and transmission
• Auto-negotiation for each port
• Quality of Service (8 queues, strict mode)
Data Transfer Rates:
• Ethernet:
• 10 Mbps (half-duplex)
• 20 Mbps (full-duplex)
• Fast Ethernet:
• 100 Mbps (half-duplex)
• 200 Mbps (full-duplex)
• Gigabit Ethernet
• 2000 Mbps (full-duplex)
Transmission Method: • Store-and-forward
MAC Address Table Size: • 8K entries
Packet Filtering/Forwarding Rates:
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer: • 512 KB per device
LED Indicators:
• Per port: Link/Activity/Speed
• Per device: Power
Media Interface Exchange: • Auto-MDI/MDIX adjustment for all ports
Dimensions: • 280 x 110 x 25 mm
Weight: • 0.77 kg
Power Input: • 12 V / 1 A
Power Consumption:
• Standby: 3.37 W
• Maximum: 8.89 W
Temperature:
• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -40 to 70 °C (-40 to 158 °F)
Humidity:
• Operating: 10% to 90% non-condensing:
• Storage: 5% to 95% non-condensing
MTBF: • 564,658 hours
Maximum Heat Dissipation: • 30.32 BTU/h
Emissions (EMI):
• CE Class A
• FCC Class A
• ICES 003
• RCM
Safety • LVD
